Product & Service

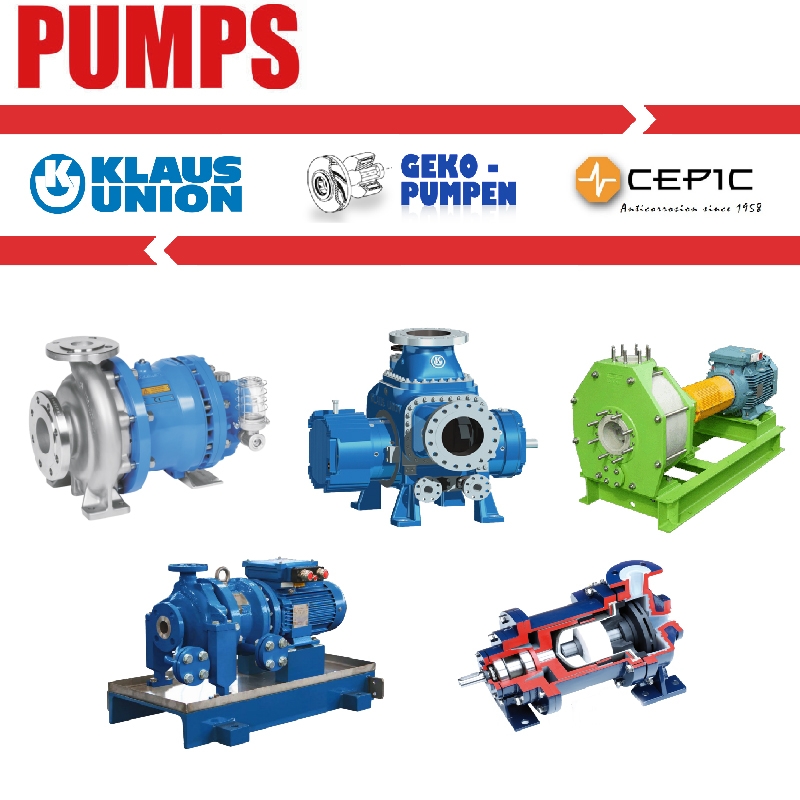

Pumps
- Klaus Union GmbH - Centrifugal Magnetic Drive Pumps, Twin Screw Pumps
- Geko-Pumpen GmbH - Teflon-lined Magnet Drive Pumps
- Cepic SAS - Graphite Magnet Drive Pumps
Germany
Klaus Union GmbH
- Centrifugal Magnetic Drive Pumps
- Twin Screw Pumps
Founded in 1946 in Bochum, Germany, Klaus Union today is a market leader in the development of pumps and valves that meet the most exacting quality requirements. Klaus Union keeps numerous patents and offers a comprehensive product portfolio of centrifugal and screw pumps.
In the early 1950s, Klaus Union had already developed the world's first magnet drive, which was introduced to industries at the ACHEMA in Frankfurt in 1955. Further trendsetting developments followed, such as the first titanium pump manufactured in Europe or entire new magnet systems.
Klaus Union's product program covers pump systems and valves for every kind of industry. A state of the art quality management system guarantees the highest degree of safety. Operators around the world trust in Klaus Union products. Their reliability is supported by comprehensive factory service, provided on-site 24/7.
SLM NV Series
Magnetic Drive Pumps
(Single Stage)
- According to DIN EN ISO2858/15783 design standard
- Temperature range: -120℃ to 450℃
- Flow Rate: with Max. 3,500m3/hr
- Head: with Max. 220m L.C.
- Options:
Ball Bearings Design (NVN/NVS/NVO Series)
Closed Coupled Design (NVB Series)
High Pressure applications (NVH Series)
- More:
(1) Features of SLM NV Series
(2) Brochure of SLM NV Series
SLM AP Series
API685 Magnetic Drive Pumps
(Single Stage)
- According to API685 design standard
- Temperature range: -120℃ to 450℃
- Flow Rate: with Max. 3,500m3/hr
- Head: with Max. 220m L.C.
- Options:
Closed Coupled Design (AVC Series)
- More:
(1) Features of SLM AP Series
(2) Brochure of SLM AP Series
SLM NHO Series
Magnetic Drive Pumps
(Hot Oil High Temperature Applciations)
- According to DIN EN ISO2858/15783 design standard
- Temperature range: -120℃ to 450℃
- Flow Rate: with Max. 1,200m3/hr
- Head: with Max. 215m L.C.
SLM GV/HV Series
Magnetic Drive Pumps
(Multi-Stage)
- According to DIN EN ISO15783 design standard
- Multi-stage: with Max. 6 stages
- High lift pumps
- Temperature range: -120℃ to 350℃
- Flow Rate: with Max. 350m3/hr
- Head: with Max. 700m L.C.
- Options:
Ball Bearings Design
Closed Coupled Design
- More:
(1) Features of SLM GV/HV Series
(2) Brochure of SLM GV/HV Series
TP NO/NVT Series
Submersible Centrifugal Pumps
(Vertical Mounted, Single Stage)
- According to DIN EN ISO2858/5199/12756 design standard
- Depth: with Max. 12m
- Temperature range: -50℃ to 250℃
- Flow Rate: with Max. 1,600m3/hr
- Head: with Max. 20m L.C.
- More:
(1) Features of SLM NO Series (Sealed Type)
(2) Features of SLM NVT (Magnetic Drive Type)
(3) Brochure of SLM NO Series (Sealed Type)
(4) Brochure of SLM NVT (Magnetic Drive Type)
DSP-2C/4C Series
Twin Screw Pumps
- According to API676 design standard
- Modern, flexible casing concept
- Features: balance line for pressure balance, 'Plug & Pump' cartridge modular design, centerline mounting
- Temperature range: -120℃ to 350℃
- Viscosity: with Max. 100,000mPas
- Flow Rate: 2C with Max. 600m3/hr; 4C with Max 5,000 m3/hr
- Options:
Magnetic Drive Single Volute Design (SLM DSP-2C Series)
- More:
(1) Features of DSP-2C Series (Single Volute Type)
(2)Features of DSP-4C Series (Double Volute Type)
(3) Features of SLM DSP-2C Series (Magnetic Drive Single Volute Design)
(4) Brochure of DSP-2C Series
(5) Brochure of DSP-4C Series
(6) Brochure of SLM DSP-2C Series
Official Website:
Klaus-union.de
Other Information:
(1) General Brochure(2) Non Metallic Containment Shells
(3) RTZ Dry-running Design
(4) Handling Liquids Containing Solids
(5) Greased for Life Lubrication
Germany
Geko-Pumpen GmbH
- Teflon-lined Magnet Drive Pumps
Founded in 1983 in Eltville am Rhein, Germany, Geko-Pumpen is a leading manufacturer of PTFE-lined chemical pumps according to DIN EN 22858 (ATEX- and FDA-compliant) for the chemical and pharmaceutical industry. The sealless PTFE/PFA-lined chemical pumps are specially designed for pumping dangerous and chemically aggressive liquids. Because of using special materials the pumps are fit for FDA-applications. Absolute freedom from leakages and practically unrestricted corrosion resistance, even at temperatures of 170℃ are the outstanding advantages.
GEKONORM NM Series
Teflon-lined Magnet Drive Pumps
- According to DIN EN ISO22858 design standard
- Temperature range: with Max. 150℃
- Flow Rate: with Min. 0.5m3/hr
Official Website:
Geko-pumpen.de
France
Cepic SAS
- Graphite Magnet Drive Pumps
Specialist since 1958 in the manufacture of anticorrosion chemical engineering equipment, Cepic offers its customers a wide range of products: Centrifugal pumps in graphite and plastics, Made-to-specification machined parts in graphite, and Heat exchangers in impregnated artificial graphite, Carbonite®
